Product Description

New for 2017 the Varial Cycle trials range from Jitsie.

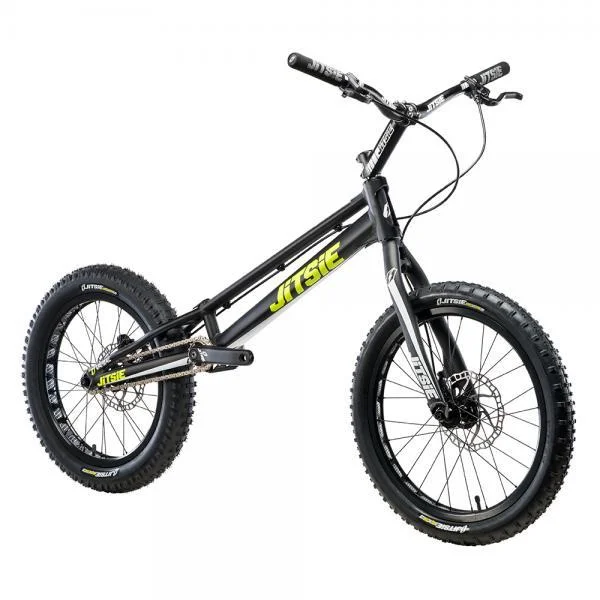

Jitsie Varial 970 Disc 20″

Taking innovation to the next level in trials, the Varial bike reflects Jitsie’s 100% focus on trials. The unity of quality manufacturing and functional minimalistic design result in a performant and durable bicycle that makes it the choice for any trials rider.

Frameset:
* frame: Jitsie Varial 970mm HS
* fork: Jitsie Varial 370mm HS

Features frame:
* manufactured from aerospace 6061-T6 aluminium
* minimalistic design with focus on performance and durability
* 120mm high CNC machined head tube designed for semi-integrated headset
* 68mm wide bottom bracket shell for ISIS bottom bracket
* CNC machined integrated rear brake boaster for HS rim brakes distanced 100mm apart
* CNC machined horizontal dropouts distanced 116mm apart come supplied with steel snail cam bolts
* sandblasted and black anodized finish with Jitsie graphics
* frame comes supplied with lightweight silicon seat plug
* frame allows for the Jitsie aftermarket seat to be installed

Geometry:
* wheelbase: 970mm
* chainstay length: 350mm
* bottom bracket height: 80mm
* headtube: 120mm
* headtube angle: 71.5°
(geometry based on Jitsie Varial fork 370mm and +45mm offset)

Wheels:
* hub front / rear: HS100 28h / HS116 32h
* rim front / rear: 20″ 32mm 28h / 19″ 48mm 32h
* spokes / nipples: inox 1.8mm / aluminium
* tyre front / rear: Reverz 20″x2.0 / Reverz 19″x2.6
* tubes: 20″ light 0.9mm

Components:
* headset: semi-integrated 1 1/8″
* headset spacer: 5mm aluminium
* stem: 135mm 35°
* handlebar: 31.8mm 700x90mm
* grips: foam
* front brake: Magura HS11
* rear brake: Magura HS11

Drivetrain:
* bottom bracket: Isis 123mm
* cranks: 160mm
* freewheel: 108.9 17t
* protector: bash plate
* sprocket: steel 13t
* chain: KMC Z610HX
* chain tensioner: snail cams
